Mist Evaporators

EEM75: Eliminates water without expensive transportation

The Epiphany EEM75 Evaporation System is a unique system developed for high-volume complete water evaporation with no ground puddling.

EEM75 can be used in the harshest environments with robust, reliable, autonomous operation.

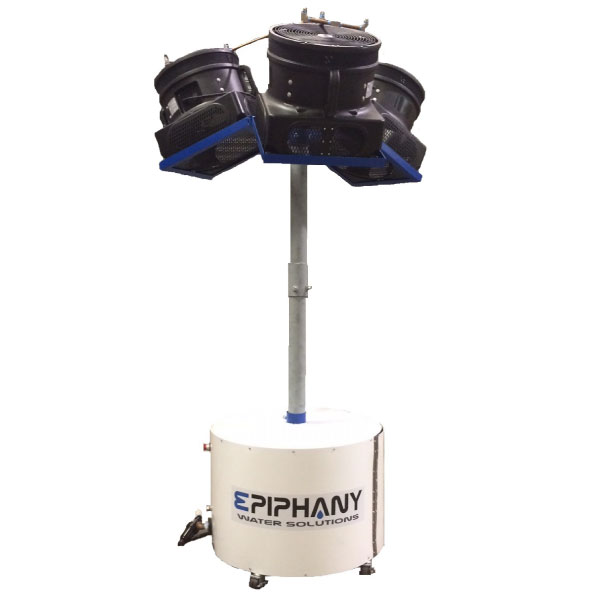

EEM75

EEM75 uses a state-of-the-art method for evaporating fresh water to the air with zero residual fallout. Epiphany's proprietary design is based on extensive fluid dynamics modeling to achieve optimal droplet size, flow ratios, and evaporation rates. Unlike other evaporators on the market, where up to 50-70% of the lofted water returns to the ground, Epiphany's design allows for a 100% evaporation rate, with none of the lofted water falling back to the ground.

Savings Calculator
from Epiphany Environmental

Tell us about your produced water needs.

Specifications

  • Evaporation Rate: 126 gal/hr (477 L/hr)
  • Evaporation Efficiency: 90-100%
  • Input Water Quality: Distilled, rain, or fresh water
  • Power Requirements: 3.8 kW electric (230V - 1ph - 17A)
  • Operational Expense: 0.9 kWh/bbl ($0.045/bbl at $0.05/kWh)
  • Installation Footprint: 4’ x 4’ x 8’ (1.2m x 1.2m x 2.4m)
  • Dry Weight: 150 lb (70 kg)

Features

  • Nearly 100% evaporation
  • Less than 2-hour installation time
  • Efficient system design
  • Low maintenance

Advantages

  • Eliminating puddling alleviates groundwater contamination concerns
  • Compact, lightweight design allow convenient placement and relocation
  • Efficient, fully autonomous operation costs less than $5/day
  • Reliable, off-the-shelf components can be serviced and replaced with minimal downtime
